What is Sharding?

Sharding is a database architecture pattern that involves horizontally partitioning data across multiple database instances or servers. Each partition, called a “shard,” contains a subset of the total data, allowing for better performance, scalability, and manageability of large datasets.

Why is Sharding Required?

1. Scalability Limitations

  • Single database servers have physical limitations (CPU, memory, disk I/O)

  • Vertical scaling (adding more resources to one server) becomes expensive and has diminishing returns

  • Horizontal scaling (adding more servers) provides better cost-effectiveness

2. Performance Issues

  • Large tables with millions/billions of rows become slow to query

  • Index maintenance becomes expensive

  • Backup and recovery operations take too long

  • Lock contention increases with more concurrent users

3. Geographic Distribution

  • Users in different regions need data closer to them for better performance

  • Compliance requirements may mandate data storage in specific geographic locations

4. Fault Isolation

  • If one shard fails, other shards continue to operate

  • Reduces the blast radius of failures

Sharding Strategies

1. Range-Based Sharding

Data is partitioned based on a range of values.

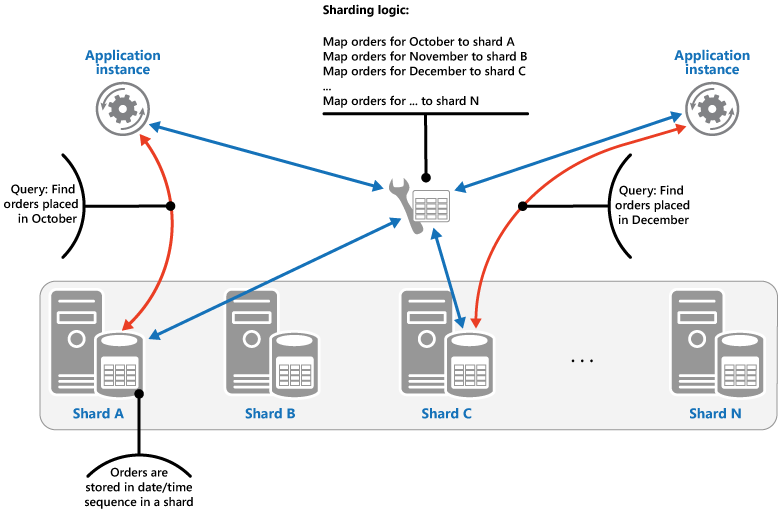

Range-Based Sharding
Range-Based Sharding779×513 19.7 KB

Example:

  • Shard 1: User IDs 1-1000

  • Shard 2: User IDs 1001-2000

  • Shard 3: User IDs 2001-3000

Pros:

  • Simple to implement

  • Easy to understand

  • Good for range queries

Cons:

  • Uneven data distribution (hot spots)

  • Difficult to rebalance when data grows

2. Hash-Based Sharding

Data is distributed using a hash function.

Hash-Based Sharding
Hash-Based Sharding742×417 15.8 KB

Example:


-- Using modulo operation

shard_id = user_id % number_of_shards

-- User ID 1234 with 4 shards: 1234 % 4 = 2 (goes to shard 2)

Pros:

  • Even data distribution

  • Good load balancing

  • Simple to implement

Cons:

  • Difficult to add/remove shards

  • Range queries become complex

  • Cross-shard queries are challenging

3. Lookup-Based Sharding (Directory-Based)

Uses a lookup service to determine which shard contains the data.

Lookup-Based Sharding
Lookup-Based Sharding780×464 18.4 KB

Physical vs Virtual Shards

Physical Shards:

  • Actual database instances or servers that store the data

  • Limited by hardware resources (CPU, memory, disk space)

  • Each physical shard is a separate database server

  • Examples: MySQL server, PostgreSQL instance, MongoDB replica set

Virtual Shards:

  • Logical partitions within physical shards

  • Multiple virtual shards can exist on a single physical shard

  • Provide flexibility for data distribution and rebalancing

  • Allow for easier scaling without adding more hardware

Example Architecture:


Physical Shard 1 (Server A)

├── Virtual Shard 1 (Users 1-1000)

├── Virtual Shard 2 (Users 1001-2000)

└── Virtual Shard 3 (Users 2001-3000)

Physical Shard 2 (Server B)

├── Virtual Shard 4 (Users 3001-4000)

├── Virtual Shard 5 (Users 4001-5000)

└── Virtual Shard 6 (Users 5001-6000)

Benefits of Virtual Shards:

  • Easier Rebalancing: Move virtual shards between physical shards without data migration

  • Flexible Scaling: Add more virtual shards to existing physical shards

  • Load Distribution: Distribute load more evenly across physical resources

  • Fault Tolerance: If one physical shard fails, only its virtual shards are affected

Example:


// Shard lookup service

const shardMap = {

'user_1': 'shard_1',

'user_2': 'shard_2',

'user_3': 'shard_1'

};

function getShard(userId) {

return shardMap[userId] || 'default_shard';

}

Pros:

  • Flexible shard assignment

  • Easy to rebalance data

  • Supports complex sharding logic

  • Virtual shards enable better resource utilization

  • Easier to scale and migrate data

  • Better fault isolation with virtual shards

Cons:

  • Single point of failure (lookup service)

  • Additional network hop for each query

  • Lookup service can become a bottleneck

  • More complex architecture with virtual shards

  • Additional overhead for virtual-to-physical mapping

Advantages

1. Improved Performance

  • Smaller datasets per shard = faster queries

  • Parallel processing across shards

  • Reduced lock contention

2. Better Scalability

  • Add more shards as data grows

  • Each shard can be scaled independently

  • Cost-effective horizontal scaling

3. Fault Isolation

  • Failure of one shard doesn’t affect others

  • Easier to implement disaster recovery

  • Reduced blast radius

4. Geographic Distribution

  • Place shards closer to users

  • Comply with data residency requirements

  • Reduce latency for global applications

5. Operational Benefits

  • Smaller backup files per shard

  • Faster maintenance operations

  • Easier to optimize individual shards

Disadvantages

1. Complexity

  • More complex application logic

  • Cross-shard queries are difficult

  • Data consistency challenges

2. Operational Overhead

  • Managing multiple database instances

  • Monitoring and alerting across shards

  • Backup and recovery coordination

3. Data Distribution Issues

  • Uneven data distribution (hot spots)

  • Difficult to rebalance data

  • Some shards may become overloaded

4. Cross-Shard Operations

  • Joins across shards are expensive

  • Transactions spanning multiple shards are complex

  • Data consistency becomes challenging

5. Development Complexity

  • Application code must be shard-aware

  • Testing becomes more complex

  • Debugging distributed issues is harder

Issues and Considerations

1. Shard Key Selection

  • Choose keys that distribute data evenly

  • Avoid keys that create hot spots

  • Consider query patterns when selecting keys

2. Cross-Shard Queries

  • Minimize queries that span multiple shards

  • Consider denormalization for frequently joined data

  • Use read replicas for reporting queries

3. Data Consistency

  • Implement eventual consistency where possible

  • Use distributed transactions sparingly

  • Consider two-phase commit for critical operations

4. Rebalancing

  • Plan for data migration when adding/removing shards

  • Implement tools for data rebalancing

  • Consider the impact on application performance

5. Monitoring and Observability

  • Monitor each shard independently

  • Set up alerts for shard-specific issues

  • Track cross-shard query performance

6. Backup and Recovery

  • Implement shard-specific backup strategies

  • Test recovery procedures for individual shards

  • Consider point-in-time recovery requirements

7. Schema Changes

  • Coordinate schema changes across all shards

  • Use migration tools that work with sharded databases

  • Test schema changes in staging environment

8. Connection Management

  • Implement connection pooling per shard

  • Handle shard failures gracefully

  • Consider read/write splitting per shard

References

This document provides a comprehensive overview of the sharding pattern for microservices architecture.
