Scheduler Agent Supervisor Pattern

[praneethshetty]

Scheduler Agent Supervisor Pattern: A Comprehensive Guide

Table of Contents

1. Introduction to Scheduler Agent Supervisor Pattern
2. How Scheduler Agent Supervisor Works
3. Core Components
4. Implementation Flow
5. Alternative Patterns
6. Comparison of Agent Management Strategies
7. When to Use Scheduler Agent Supervisor
8. Pros and Cons
9. Code Example
10. Conclusion

---

1. Introduction to Scheduler Agent Supervisor Pattern

The Scheduler Agent Supervisor Pattern is a distributed computing architecture that coordinates the execution of multiple autonomous agents through a centralized supervisor that manages task scheduling and resource allocation.

• The Supervisor acts as the central coordinator and task scheduler
• Agents are independent workers that execute specific tasks
• The Scheduler component manages timing, priorities, and resource distribution
• This pattern is widely used in distributed systems, microservices, and multi-agent systems

Key Characteristics

Centralized Coordination – Supervisor manages all agent activities

Autonomous Agents – Agents work independently on assigned tasks

Dynamic Scheduling – Tasks are scheduled based on priorities and resource availability

Fault Tolerance – System can handle agent failures gracefully

---

2. How Scheduler Agent Supervisor Works

Step-by-Step Flow

Task Scheduling Flow

1. Task Queue Management – Supervisor maintains a priority queue of pending tasks
2. Agent Discovery – Supervisor tracks available agents and their capabilities
3. Task Assignment – Scheduler assigns tasks to appropriate agents based on:

• Agent availability
• Task priority
• Resource requirements
• Agent specialization

4. Execution Monitoring – Supervisor monitors agent progress and health
5. Result Collection – Completed task results are collected and processed

Agent Lifecycle Management

1. Agent Registration – New agents register with supervisor
2. Health Monitoring – Supervisor continuously monitors agent status
3. Task Dispatch – Tasks are sent to available agents
4. Progress Tracking – Agent execution progress is monitored
5. Resource Cleanup – Failed or completed agents are properly cleaned up

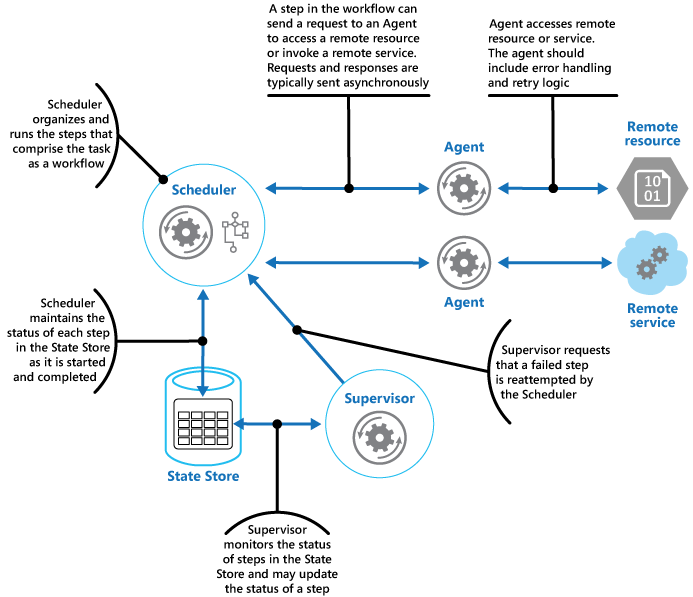

Diagram: Scheduler Agent Supervisor Architecture

┌─────────────────────────────────────────────────────────────┐
│                    SUPERVISOR                               │
│  ┌─────────────────┐  ┌─────────────────┐  ┌──────────────┐ │
│  │   Task Queue    │  │    Scheduler    │  │  Agent Pool  │ │
│  │                 │  │                 │  │              │ │
│  │ - Priority      │  │ - Assignment    │  │ - Available  │ │
│  │ - Dependencies  │  │ - Load Balance  │  │ - Busy       │ │
│  │ - Resources     │  │ - Retry Logic   │  │ - Failed     │ │
│  └─────────────────┘  └─────────────────┘  └──────────────┘ │
└─────────────────────────────────────────────────────────────┘
           │                    │                    │
           ▼                    ▼                    ▼
    ┌─────────────┐    ┌─────────────┐    ┌─────────────┐
    │   Agent A   │    │   Agent B   │    │   Agent C   │
    │             │    │             │    │             │
    │ - Execute   │    │ - Execute   │    │ - Execute   │
    │ - Report    │    │ - Report    │    │ - Report    │
    │ - Health    │    │ - Health    │    │ - Health    │
    └─────────────┘    └─────────────┘    └─────────────┘

---

3. Core Components

Supervisor

• Central coordinator that manages the entire system
• Maintains global state and system-wide policies
• Handles agent failures and system recovery
• Provides monitoring and logging capabilities

Scheduler

• Task assignment logic that decides which agent gets which task
• Implements scheduling algorithms (FIFO, Priority, Round Robin, etc.)
• Manages load balancing across agents
• Handles task dependencies and constraints

Agent Pool

• Collection of worker agents that execute tasks
• Each agent has specific capabilities and resource limits
• Agents can be stateful or stateless
• Supports dynamic scaling (adding/removing agents)

Task Queue

• Priority-based queue that holds pending tasks
• Supports different queue types (FIFO, LIFO, Priority)
• Handles task metadata (priority, dependencies, deadlines)
• Provides persistence and recovery mechanisms

---

4. Implementation Flow

Supervisor Responsibilities

1. Initialize system components
2. Start agent discovery and registration
3. Begin task queue processing
4. Monitor agent health continuously
5. Handle failures and recovery
6. Collect and aggregate results
7. Shutdown gracefully

Agent Responsibilities

1. Register with supervisor
2. Send periodic heartbeats
3. Wait for task assignments
4. Execute assigned tasks
5. Report progress and results
6. Handle local errors
7. Graceful shutdown on termination

Scheduler Logic

1. Fetch next task from queue
2. Evaluate agent availability
3. Match task requirements with agent capabilities
4. Assign task to optimal agent
5. Set timeout and retry parameters
6. Monitor execution progress
7. Handle completion or failure

---

5. Alternative Patterns

Master-Worker Pattern

Master Node:
  - Centralized task distribution
  - Simple round-robin assignment
  - No complex scheduling logic
  - Direct point-to-point communication

Usage: Simple parallel processing tasks

Publisher-Subscriber with Orchestrator

Orchestrator:
  - Publishes tasks to message queues
  - Agents subscribe to relevant topics
  - Event-driven task processing
  - Loose coupling between components

Usage: Event-driven architectures

Hierarchical Supervisor Pattern

Top-Level Supervisor:
  - Manages multiple sub-supervisors
  - Each sub-supervisor manages agent groups
  - Hierarchical fault tolerance
  - Distributed coordination

Usage: Large-scale distributed systems

Peer-to-Peer Agent Coordination

Distributed Agents:
  - No central supervisor
  - Agents coordinate directly
  - Consensus-based task assignment
  - Self-organizing behavior

Usage: Blockchain, distributed consensus systems

---

6. Comparison of Agent Management Strategies

Pattern	Coordination	Fault Tolerance	Scalability	Complexity	Use Case
Scheduler Agent Supervisor	Centralized	High (supervisor recovery)	Medium-High	Medium-High	Task orchestration, workflow systems
Master-Worker	Centralized	Low (single point of failure)	Medium	Low	Simple parallel processing
Publisher-Subscriber	Event-driven	Medium (message persistence)	High	Medium	Event processing, microservices
Hierarchical Supervisor	Multi-level	Very High	Very High	High	Large enterprise systems
Peer-to-Peer	Distributed	High (no single point)	High	Very High	Blockchain, consensus systems

---

7. When to Use Scheduler Agent Supervisor?

Complex Task Orchestration – When tasks have dependencies and priorities

Resource Management – When you need to optimize resource allocation

Fault Tolerance – When system needs to handle agent failures gracefully

Dynamic Scaling – When agent pool needs to scale up/down dynamically

Monitoring Requirements – When you need centralized monitoring and logging

Heterogeneous Agents – When agents have different capabilities and specializations

---

8. Pros and Cons

Pros

Centralized Control – Easy to monitor and manage entire system

Efficient Resource Utilization – Optimal task-to-agent assignment

Fault Recovery – Can handle agent failures and redistribute tasks

Scalability – Can dynamically add/remove agents

Policy Enforcement – Centralized place to implement business rules

Cons

Single Point of Failure – Supervisor failure affects entire system

Complexity – More complex than simple master-worker patterns

Performance Bottleneck – Supervisor can become performance limiting factor

Network Overhead – Continuous communication between supervisor and agents

---

9. Code Example

import asyncio
import json
from typing import Dict, List, Optional, Any
from enum import Enum
from dataclasses import dataclass
from datetime import datetime

class TaskStatus(Enum):
    PENDING = "pending"
    ASSIGNED = "assigned"
    RUNNING = "running"
    COMPLETED = "completed"
    FAILED = "failed"

class AgentStatus(Enum):
    AVAILABLE = "available"
    BUSY = "busy"
    FAILED = "failed"

@dataclass
class Task:
    id: str
    priority: int
    payload: Dict[str, Any]
    status: TaskStatus = TaskStatus.PENDING
    assigned_agent: Optional[str] = None
    created_at: datetime = datetime.now()

@dataclass
class Agent:
    id: str
    capabilities: List[str]
    status: AgentStatus = AgentStatus.AVAILABLE
    current_task: Optional[str] = None
    last_heartbeat: datetime = datetime.now()

class Supervisor:
    """
    Central supervisor that manages agents and schedules tasks.
    """

    def __init__(self):
        self.agents: Dict[str, Agent] = {}
        self.task_queue: List[Task] = []
        self.completed_tasks: Dict[str, Task] = {}
        self.running = False

    async def register_agent(self, agent: Agent) -> bool:
        """Register a new agent with the supervisor."""
        self.agents[agent.id] = agent
        print(f"Agent {agent.id} registered")
        return True

    async def submit_task(self, task: Task) -> None:
        """Submit a new task to the queue."""
        self.task_queue.append(task)
        self.task_queue.sort(key=lambda t: t.priority, reverse=True)
        print(f"📋 Task {task.id} queued (priority: {task.priority})")

    async def schedule_tasks(self) -> None:
        """Main scheduling loop - assign tasks to available agents."""
        while self.running:
            if self.task_queue:
                # Find available agent
                available_agent = self._find_available_agent()

                if available_agent:
                    # Get highest priority task
                    task = self.task_queue.pop(0)

                    # Assign task to agent
                    await self._assign_task_to_agent(task, available_agent)

            await asyncio.sleep(1)  # Schedule every second

    def _find_available_agent(self) -> Optional[Agent]:
        """Find an available agent for task assignment."""
        for agent in self.agents.values():
            if agent.status == AgentStatus.AVAILABLE:
                return agent
        return None

    async def _assign_task_to_agent(self, task: Task, agent: Agent) -> None:
        """Assign a specific task to a specific agent."""
        task.status = TaskStatus.ASSIGNED
        task.assigned_agent = agent.id

        agent.status = AgentStatus.BUSY
        agent.current_task = task.id

        print(f"Task {task.id} assigned to Agent {agent.id}")

        # Simulate task execution
        asyncio.create_task(self._execute_task(task, agent))

    async def _execute_task(self, task: Task, agent: Agent) -> None:
        """Simulate task execution by agent."""
        task.status = TaskStatus.RUNNING

        # Simulate work (replace with actual agent communication)
        await asyncio.sleep(2)

        # Mark task as completed
        task.status = TaskStatus.COMPLETED
        self.completed_tasks[task.id] = task

        # Free up agent
        agent.status = AgentStatus.AVAILABLE
        agent.current_task = None

        print(f"Task {task.id} completed by Agent {agent.id}")

# Usage Example
async def main():
    supervisor = Supervisor()
    supervisor.running = True

    # Register agents
    agent1 = Agent("agent-1", ["data_processing", "analytics"])
    agent2 = Agent("agent-2", ["image_processing", "ml"])

    await supervisor.register_agent(agent1)
    await supervisor.register_agent(agent2)

    # Submit tasks
    tasks = [
        Task("task-1", priority=1, payload={"type": "data_processing"}),
        Task("task-2", priority=3, payload={"type": "analytics"}),
        Task("task-3", priority=2, payload={"type": "image_processing"})
    ]

    for task in tasks:
        await supervisor.submit_task(task)

    # Start scheduler
    scheduler_task = asyncio.create_task(supervisor.schedule_tasks())

    # Run for 10 seconds
    await asyncio.sleep(10)
    supervisor.running = False

    print(f"\n📊 Completed {len(supervisor.completed_tasks)} tasks")

if __name__ == "__main__":
    asyncio.run(main())

---

10. Conclusion

• Scheduler Agent Supervisor is ideal for complex task orchestration with centralized control
• Master-Worker provides simpler coordination for basic parallel processing
• Publisher-Subscriber offers event-driven, loosely coupled architectures
• Hierarchical patterns scale to very large distributed systems

Choose the right pattern based on your complexity, scalability, and fault-tolerance requirements!
