Queue-Based Load Leveling: Smoothing the Spikes in Microservices
Modern applications often face unpredictable workloads. One moment the traffic is normal, the next, it spikes 10x due to a marketing campaign, festival sale, or unexpected viral trend. If your backend services try to handle this surge directly, they can collapse under pressure.
That’s where the Queue-Based Load Leveling Pattern comes in.
What is Queue-Based Load Leveling?
This resiliency pattern introduces a queue between producers (clients or front-end services) and consumers (backend workers).
Instead of overwhelming the consumer with all incoming requests, producers put messages onto a queue. The consumer then processes those messages at a steady, manageable pace.
It’s like a restaurant:
- Customers (producers) place orders with the waiter.
- Orders go to the kitchen (queue).
- Chefs (consumers) cook at a steady pace without chaos, no matter how many people walk in at once.
Why Use It?
- Handle Spikes Gracefully: Absorb sudden bursts of requests.
- Decouple Systems: Producers and consumers don’t have to be online at the same time.
- Reliability: If a consumer crashes, messages remain safe in the queue until it’s back.
- Scalability: Add more consumers when traffic grows.
How It Works in Microservices
- Producer Service: Accepts requests and writes them to a queue (e.g., SQS, RabbitMQ, Kafka).
- Queue: Stores requests reliably.
- Consumer Service: Pulls messages off the queue and processes them at a controlled rate.
Real-World Examples
1. Payment Processing
In a payment app, users may flood the system during peak times. If the Payments Service writes directly to the bank API, it may overload or timeout.
With Queue-Based Load Leveling:
- Payment requests are stored in a queue (Amazon SQS).
- Worker services read from the queue and call the bank API steadily.
- Users immediately get an acknowledgment that their request is accepted, even if processing happens a bit later.
2. Notifications System
Imagine sending 1M emails after a new product launch. If your service calls SES or Twilio directly, you’ll hit rate limits.
Solution:
- Queue all email/SMS requests.
- Workers pull messages at a sustainable rate, respecting API quotas.
3. Video Processing
Users upload videos simultaneously. Instead of trying to transcode all at once (and crashing servers), uploads go into a queue.
Workers then pick them one by one (or in batches), ensuring smooth processing.
Context and problem
Many solutions in the cloud involve running tasks that invoke services. In this environment, if a service is subjected to intermittent heavy loads, it can cause performance or reliability issues.
A service could be part of the same solution as the tasks that use it, or it could be a third-party service providing access to frequently used resources such as a cache or a storage service. If the same service is used by a number of tasks running concurrently, it can be difficult to predict the volume of requests to the service at any time.
A service might experience peaks in demand that cause it to overload and be unable to respond to requests in a timely manner. Flooding a service with a large number of concurrent requests can also result in the service failing if it’s unable to handle the contention these requests cause.
Solution

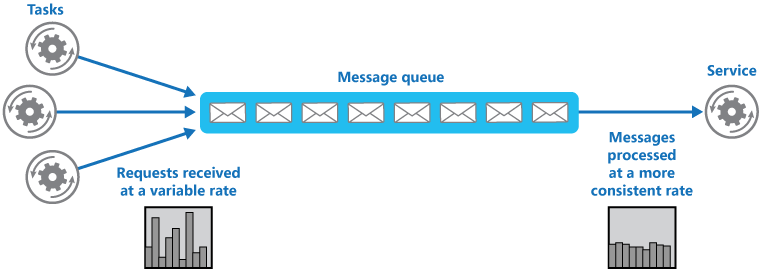

Refactor the solution and introduce a queue between the task and the service. The task and the service run asynchronously. The task posts a message containing the data required by the service to a queue. The queue acts as a buffer, storing the message until it’s retrieved by the service. The service retrieves the messages from the queue and processes them. Requests from a number of tasks, which can be generated at a highly variable rate, can be passed to the service through the same message queue. This figure shows using a queue to level the load on a service.
The queue decouples the tasks from the service, and the service can handle the messages at its own pace regardless of the volume of requests from concurrent tasks. Additionally, there’s no delay to a task if the service isn’t available at the time it posts a message to the queue.
This pattern provides the following benefits:
- It can help to maximize availability because delays arising in services won’t have an immediate and direct impact on the application, which can continue to post messages to the queue even when the service isn’t available or isn’t currently processing messages.
- It can help to maximize scalability because both the number of queues and the number of services can be varied to meet demand.
- It can help to control costs because the number of service instances deployed only have to be adequate to meet average load rather than the peak load.
Some services implement throttling when demand reaches a threshold beyond which the system could fail. Throttling can reduce the functionality available. You can implement load leveling with these services to ensure that this threshold isn’t reached.
Issues and considerations
Consider the following points when deciding how to implement this pattern:
- It’s necessary to implement application logic that controls the rate at which services handle messages to avoid overwhelming the target resource. Avoid passing spikes in demand to the next stage of the system. Test the system under load to ensure that it provides the required leveling, and adjust the number of queues and the number of service instances that handle messages to achieve this.
- Message queues are a one-way communication mechanism. If a task expects a reply from a service, it might be necessary to implement a mechanism that the service can use to send a response. For more information, see the Asynchronous Messaging Primer.
- Be careful if you apply autoscaling to services that are listening for requests on the queue. This can result in increased contention for any resources that these services share and diminish the effectiveness of using the queue to level the load.
- Depending on the load of the service, you can run into a situation where you’re effectively always trailing behind, where the system is always queuing up more requests than you’re processing. The variability of incoming traffic to your application needs to be taken into consideration
- The pattern can lose information depending on the persistence of the Queue. If your queue crashes or drops information (due to system limits) there’s a possibility that you don’t have a guaranteed delivery. The behavior of your queue and system limits needs to be taken into consideration based on the needs of your solution.
When to use this pattern
This pattern is useful to any application that uses services that are subject to overloading.
This pattern isn’t useful if the application expects a response from the service with minimal latency.
Benefits
Smooths out traffic spikes
Increases reliability & uptime
Decouples producer and consumer lifecycles
Scales horizontally by adding more consumers
When to Use It
- Systems with highly variable traffic (e.g., e-commerce flash sales).
- Third-party APIs with rate limits.
- Heavy workloads like file uploads, video transcoding, or bulk notifications.
Closing Thoughts
The Queue-Based Load Leveling Pattern ensures your system doesn’t break under sudden traffic spikes. By buffering work in a queue and letting consumers process it at a safe pace, you protect core services while keeping users happy.
Think of it as a shock absorber: it smooths the bumps in your system’s traffic so you can keep driving forward.
