Gateway Routing Patterns: Simplifying Client-Service Communication

Backend
1

In today’s cloud-native world, applications rarely consist of a single service. Modern systems are built using microservices, multiple instances of the same service, and sometimes even multiple versions of a service running side by side. While this provides scalability and flexibility, it also introduces challenges for clients that need to interact with these services.

This is where the Gateway Routing Pattern comes in.

The Problem: Too Many Endpoints, Too Much Complexity

Imagine an e-commerce application.

  • It has multiple services: product, order, payments, and shipping.
  • Each service exposes its own API.
  • The client (a mobile app or frontend) must know about all these APIs to interact with them.

Without a gateway, the client must handle multiple services and endpoints directly.

:backhand_index_pointing_right: This leads to:

  • More network chatter between the client and backend.
  • Higher maintenance overhead for frontend teams.
  • Difficulty in rolling out new services or versions without client updates.

The Solution: Introducing a Gateway

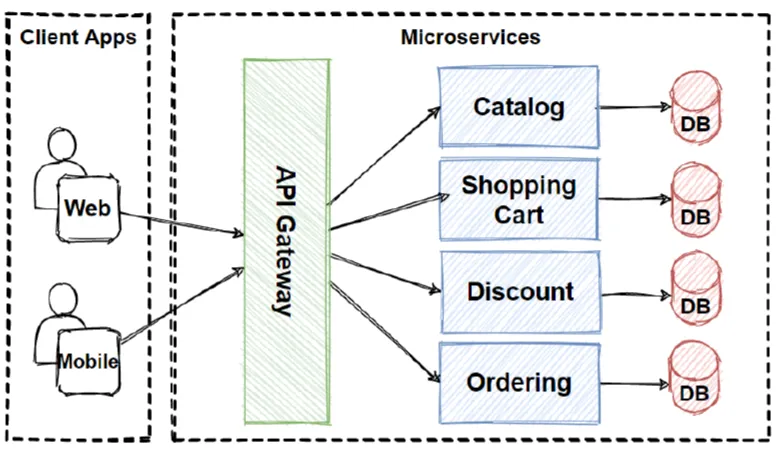

A gateway sits in front of your services and acts as a single entry point for all client requests.

img-0
img-0779×453 36.5 KB

The client talks to one gateway, and the gateway routes traffic to the right services.

Instead of the client juggling multiple endpoints, it only needs to know one gateway endpoint. The gateway then uses application-level (Layer 7) routing rules — such as URL paths, headers, query parameters, or cookies — to direct the request to the right service instance or version.

Benefits of the Gateway Routing Pattern

1. Multiple Services, One Endpoint

Clients only interact with the gateway. Backend changes like adding, splitting, or reorganizing services do not affect the client.

img-1
img-1794×214 3.5 KB

Example: The client always calls https://api.shop.com, while the gateway internally routes to /products, /orders, or /payments services.

2. Handling Multiple Instances

When demand increases, new service instances can be spun up. When demand drops, instances can be terminated. The gateway manages this elasticity seamlessly. Clients remain unaware of scaling events.



img-2
img-2444×284 3.03 KB

The gateway helps balance load across multiple instances transparently.

3. Supporting Multiple Versions

The gateway can route traffic between service versions during deployments. This enables safe rollouts (incremental, parallel, or full) and easy rollbacks in case of issues.



img-3
img-3364×236 2.49 KB

Traffic routing between old and new versions is managed at the gateway level.

Example: You can route 10% of traffic to v2 while 90% continues to hit v1. If v2 performs well, traffic can gradually shift to 100%.

4. Centralized Cross-Cutting Concerns

Gateways can also handle non-routing concerns consistently across all services:

  • Authentication & Authorization – Enforce OAuth2/JWT at the edge.
  • Rate Limiting & Throttling – Prevent abuse by limiting requests per client.
  • Caching – Reduce latency by caching frequent responses.
  • Monitoring & Observability – Collect metrics, logs, and traces in one place.

Challenges and Considerations

While gateways simplify client-service communication, they also introduce some important concerns:

  • Single Point of Failure – If the gateway fails, the entire system can become unavailable. High availability and redundancy are crucial.
  • Potential Bottleneck – All traffic flows through the gateway, so it must be able to scale with demand. Load testing is essential.
  • Complex Configuration – Managing routing rules, service discovery, and security policies adds operational complexity.
  • Security Risks – If compromised, the gateway becomes a central attack vector. It must be secured with TLS, WAFs, authentication, rate limiting, and authorization.

Alignment with the AWS Well-Architected Framework

The Gateway Routing Pattern addresses multiple pillars of the AWS Well-Architected Framework:

  • Reliability – Routes traffic only to healthy service instances.
  • Operational Excellence – Provides centralized control for deployments, domains, and encryption.
  • Performance Efficiency – Balances traffic across nodes and regions for better performance.
  • Security – Centralizes access policies and enforces encryption in transit.

Real-World Examples

  • AWS API Gateway – Managed service for serverless applications.
  • NGINX / HAProxy – Popular open-source reverse proxies for routing and load balancing.
  • Kong – API gateway with plugins for authentication, logging, and monitoring.
  • Istio / Envoy – Service mesh technologies that extend gateway routing with advanced traffic policies like retries and circuit breaking.

Conclusion

The Gateway Routing Pattern is a powerful architectural strategy for managing microservices, service scaling, and deployment complexity. It decouples clients from backend services, enables flexible deployments, and provides centralized traffic management.

However, as with any powerful tool, it comes with trade-offs. Careful planning, robust monitoring, and strong security practices are necessary to ensure the gateway remains a scalable, reliable, and secure part of your architecture.

:backhand_index_pointing_right: This pattern is widely used in API gateways like AWS API Gateway, NGINX, Kong, and Istio. If you’re building a modern distributed system, the Gateway Routing Pattern is a foundational building block you’ll almost certainly need.
