Cache-Aside Pattern: A Comprehensive Guide

Table of Contents

1. Introduction to Cache-Aside Pattern
2. How Cache-Aside Works
3. Read-Through Cache
4. Write-Through Cache
5. Write-Behind (Write-Back) Cache
6. Comparison of Caching Strategies
7. When to Use Cache-Aside
8. Pros and Cons
9. Conclusion

---

1. Introduction to Cache-Aside Pattern

The Cache-Aside Pattern (also known as Lazy Loading) is a caching strategy where the application is responsible for loading data into the cache on demand.

• The cache does not interact directly with the database.
• The application checks the cache first; if data is missing (cache miss), it fetches from the database and updates the cache.
• This pattern is widely used in high-performance applications to reduce database load.

Key Characteristics

Lazy Loading – Data is loaded into the cache only when requested.

Application-Managed – The app controls cache population.

High Performance – Reduces database queries for frequently accessed data.

---

2. How Cache-Aside Works

Step-by-Step Flow

Read Operation (Cache Hit vs. Cache Miss)

1. Application checks the cache for the requested data.
2. If data exists (Cache Hit) → Return data from cache.
3. If data doesn’t exist (Cache Miss) →
   • Fetch data from the database.
   • Store data in the cache for future requests.
   • Return data to the client.

Write Operation

1. Application updates the database directly.
2. Cache is invalidated (entry is deleted or updated).
   • Ensures consistency between cache and database.

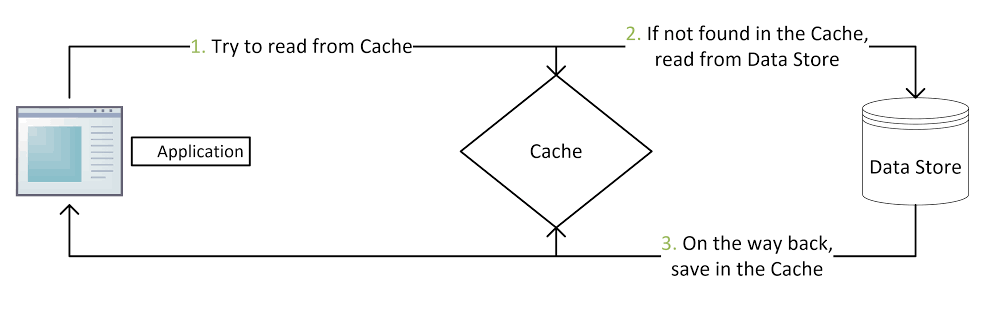

Diagram: Cache-Aside Flow

---

3. Read-Through Cache

How It Differs from Cache-Aside

• Cache interacts with the database directly (unlike Cache-Aside where the app manages it).
• On a cache miss, the cache itself loads data from the database and stores it.

When to Use?

When you want the cache to handle data loading automatically.

Useful in systems with heavy read workloads.

Diagram: Read-Through Flow

---

4. Write-Through Cache

How It Works

• Every write goes through the cache first, then the database.
• Ensures cache and DB are always in sync.

Pros & Cons

Strong consistency (no stale data).

Higher write latency (extra step before DB write).

Diagram: Write-Through Flow

---

5. Write-Behind (Write-Back) Cache

How It Works

• Writes are first stored in cache and asynchronously written to the DB.
• Improves write performance but risks data loss if cache fails.

When to Use?

High-write systems (e.g., logging, analytics).

When temporary inconsistency is acceptable.

Diagram: Write-Behind Flow

---

6. Comparison of Caching Strategies

Strategy	Read Behavior	Write Behavior	Consistency	Performance
Cache-Aside	App checks cache first	App writes to DB, then invalidates cache	Eventual	High (lazy load)
Read-Through	Cache fetches if miss	Same as Cache-Aside	Eventual	High (auto-load)
Write-Through	Same as Cache-Aside	Write to cache & DB sync	Strong	Lower (sync write)
Write-Behind	Same as Cache-Aside	Write to cache, async DB update	Eventual	Highest (async)

---

Example code snippet

import redis
import json
from typing import Dict, Any, Optional

# Initialize Redis client with type annotation
redis_client: redis.Redis[bytes] = redis.Redis(host='localhost', port=6379, db=0)

def get_user(user_id: int) -> Optional[Dict[str, Any]]:
    """
    Retrieve user data using Cache-Aside pattern.

    Args:
        user_id (int): The unique identifier for the user

    Returns:
        Optional[Dict[str, Any]]: User data dictionary if found, None otherwise
    """
    # Check cache first - attempt to get cached data
    cached_user: Optional[bytes] = redis_client.get(f"user:{user_id}")

    if cached_user:  # Cache hit - data exists in cache
        return json.loads(cached_user)

    # Cache miss - fetch from database
    user: Optional[Dict[str, Any]] = fetch_user_from_db(user_id)

    # Store in cache for future requests (TTL: 3600 seconds = 1 hour)
    if user is not None:
        redis_client.setex(f"user:{user_id}", 3600, json.dumps(user))

    return user

def update_user(user_id: int, user_data: Dict[str, Any]) -> None:
    """
    Update user data and invalidate cache.

    Args:
        user_id (int): The unique identifier for the user to update
        user_data (Dict[str, Any]): Dictionary containing updated user fields
    """
    # Update database first (source of truth)
    update_user_in_db(user_id, user_data)

    # Invalidate cache to prevent serving stale data
    redis_client.delete(f"user:{user_id}")

# Mock database functions - replace with your actual database implementation
def fetch_user_from_db(user_id: int) -> Optional[Dict[str, Any]]:
    """Fetch user from database."""
    pass

def update_user_in_db(user_id: int, user_data: Dict[str, Any]) -> bool:
    """Update user in database."""
    pass

7. When to Use Cache-Aside?

Read-heavy applications (e.g., social media, blogs).

When you need fine-grained cache control.

When strong consistency is not critical.

---

8. Pros and Cons of Cache-Aside

Pros

Reduces database load by caching frequent queries.

Simple to implement (no complex cache logic).

Works with any database.

Cons

Cache misses can cause delays.

Stale data risk if invalidation is not handled properly.

---

9. Conclusion

• Cache-Aside is ideal for read-heavy, low-latency applications.
• Read-Through / Write-Through provide better consistency but may impact performance.
• Write-Behind is best for high-write, low-latency systems.

Choose the right strategy based on your consistency, performance, and fault-tolerance needs!
