Building a Role-Based World Map Dashboard with Scalable Geo Visualization

Frontend
1

Overview / Introduction

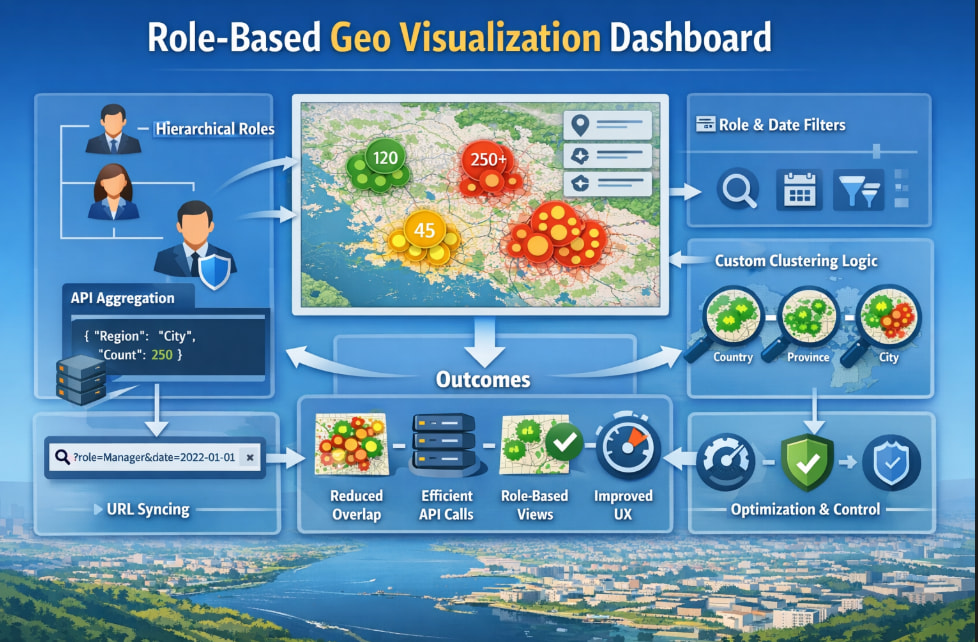

image978×642 240 KB

This post is about designing and implementing a role-aware, scalable world map visualization inside an analytics dashboard.

The goal was to transform structured regional data (country → province → district → city → postal code) into a meaningful, interactive geographic experience — not just a static map with pins.

The system supports:

  • Hierarchical user roles

  • Aggregated API-based location data

  • Zoom-based clustering

  • URL-synced filtering

  • Smart geo fallbacks

  • Controlled API refetching

Problem Statement

Several challenges made this more complex than a typical map implementation:

  1. The API returned aggregated user counts per location, not individual user records.

  2. Some records had null or zero latitude/longitude values.

  3. Large datasets caused severe marker overlap and performance degradation.

  4. Role-based access control required strict hierarchical filtering.

Initial Approaches Tried (What Didn’t Work)

1. Direct Marker Rendering

Initially, each user count was expanded and rendered directly as map markers.

Issues:

  • Massive overlapping at low zoom

  • Poor readability

  • UI clutter

  • Performance degradation

2. Third-Party Clustering Plugins

We tested automatic clustering solutions.

Issues:

  • Limited control over cluster styling

  • Hard to apply dominant-role coloring

  • Inflexible grouping logic

  • Difficult to integrate with hierarchical filtering

3. Triggering API on Every Filter Change

Early implementation refetched on every state change.

Issues:

  • Duplicate network calls

  • Race conditions

  • UI flickering

  • Poor user experience

Why This Final Approach

We selected OpenLayers for the following reasons:

  • Fine-grained control over vector layers

  • Custom overlays for tooltips

  • Manual clustering flexibility

  • Lightweight but powerful GIS capabilities

  • Precise geometry handling

Instead of relying on external clustering logic, we built a custom zoom-based grouping mechanism, which gave us predictable behavior and full styling control.

This approach addressed:

  • Marker overlap

  • Role-based styling

  • Filter synchronization

  • API efficiency

Data Flow Architecture

  1. API returns aggregated user counts by location.

  2. Location data is transformed into renderable entities.

  3. Role hierarchy determines allowed visibility.

  4. Selected filters update URL query parameters.

  5. Parameters are compared before refetching.

  6. Users are grouped dynamically based on zoom precision.

  7. Vector layers are rendered.

  8. Overlay tooltips show role-wise breakdown.

Smart Clustering Logic

Instead of static clustering:

const precision = currentZoom > 10 ? 1000 : currentZoom > 6 ? 100 : 10;

  • Low zoom → larger grouping

  • Medium zoom → moderate grouping

  • High zoom → granular separation

This ensures smooth scaling behavior.

Geo Fallback Strategy

If latitude/longitude is:

  • null

  • 0

  • invalid

The system falls back to country-level coordinates.

This prevents:

  • Invisible markers

  • Map distortion

  • Data loss in visualization

Where and How This Is Used

This feature is part of an internal analytics dashboard used to:

  • Visualize user distribution globally
  • Filter users by role hierarchy
  • Apply activity-based filters (Active / Inactive / Dormant)
  • Apply date range filters
  • Search by country or province
  • Analyze operational coverage regionally

Location data is structured with:

  • Region name
  • Province
  • District
  • City
  • Postal code
  • Regional code

This ensures geographic precision and consistent mapping logic.

Outcome / Benefits

After implementing this architecture:

:check_mark: Significant reduction in overlapping markers
:check_mark: Improved zoom clarity
:check_mark: Predictable cluster behavior
:check_mark: No redundant API calls
:check_mark: Shareable filtered URLs
:check_mark: Cleaner and faster UI interactions
:check_mark: Better separation of transformation and rendering logic

From a scalability perspective:

  • The system handles large datasets efficiently

  • Logic is modular and maintainable

  • UI remains responsive under heavy filtering

Lessons Learned / Pitfalls

  • Never assume API geo data is clean.

  • Avoid uncontrolled API refetch cycles.

  • Third-party clustering tools may limit customization.

  • Role hierarchy must be consistent across frontend and backend.

  • URL-synced filters drastically improve UX.

  • Manual clustering gives better long-term control.

Future Improvements

While the system is production-ready, further enhancements could include:

  1. Server-Side Geo Aggregation

  2. Heatmap Layer

  3. Real-Time Updates

  4. Drill-Down Navigation

  5. Viewport-Based Lazy Loading

  6. Time-Based Playback Mode

If there’s a better approach, optimization idea, or architectural suggestion — I’m happy to learn and evolve the solution further.

Looking forward to your feedback and insights.
